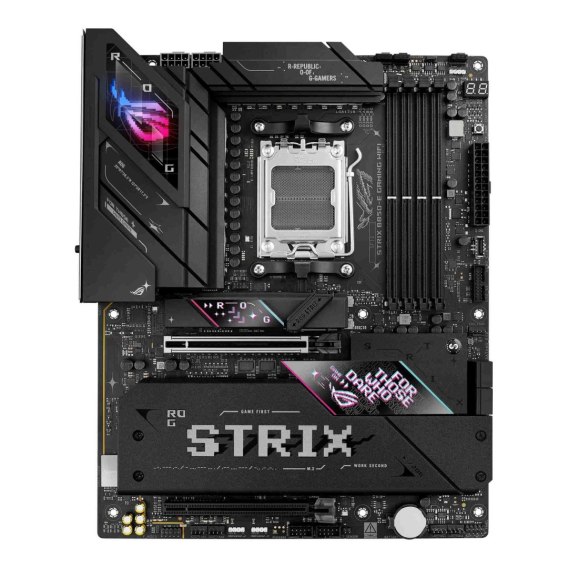

Płyta Asus ROG STRIX B850-E GAMING WIFI /AMD B850/DDR5/SATA3/M.2/USB4/PCIe5.0/AM5/ATX
Symbol:
ROG STRIX B850-E GAMING WIFI
2319.00
2087.1
cena z kodem
GIFTJOY
| Wysyłka w ciągu | 3 dni |
| Cena przesyłki | 0 |
| Dostępność |
|
| Waga | 0.15 kg |
| Kod kreskowy | |
| EAN | 4711387769300 |
| Data dodania | 2026-02-04 |
#zostańznami - kupuj online!
| Zostaw telefon |
Gniazdo procesora: Socket AM5
Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
Uwagi do procesora: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Format płyty: ATX
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Chipset płyty głównej: AMD B850
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 192 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-8000+ (OC)
Uwagi do pamięci RAM: Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), Supported memory types, data rate (speed), and number of DRAM modules vary, depending on the CPU and memory configuration, for more information, please refer to CPU/Memory Support list under the Support tab of product
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 5x M.2
Uwagi do kontrolera SATA: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), - M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports), - M.2_3 slot (Key M), type 2280 (Not supports), AMD B850 Chipset:, - M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - 4 x SATA 6Gb/s ports, When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8., when SATA6G_1 or SATA6G_2 run, M.2_2 and M.2_3 slot will be disabled while using the, AMD Ryzen™ 8000 Series Desktop Processors., M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is, operating, M.2_4 will be disabled., AMD RAIDXpert2 Technology, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 7000 Series Processors: RAID 0/1/10
Gniazda karty graficznej: HDMI, USB4 Type-C, DisplayPort
Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, AMD CPU specifications, Supports max. 8K@30Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1, VGA resolution support depends on processors' or graphic cards' resolution, Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Zintegrowana karta dźwiękowa: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Gniazda karty dźwiękowej: 2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording, input, Supports up to 32-Bit/384 kHz playback on front panel, SupremeFX Shielding Technology, Savitech SV3H712 AMP, Gold-plated audio jacks, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover, A chassis with an HD audio module in the front panel is required to support, 7.1 Surround Sound audio output., The LINE OUT port on the rear panel does not support spatial audio. If you, wish to use spatial audio, make sure to connect your audio output device, to the audio jack on the front panel of your chassis or use a USB, interface audio device.
Złącza PCI Express x16: 3
Uwagi do złącz PCI: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes), AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot with Q-Rlease Slim(supports PCIe 4.0 x8 or x4 mode), AMD B850 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode), When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8, M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is, operating, M.2_4 will be disabled.
Port LAN: 1x 5 Gigabit LAN Realtek®
Uwagi do karty sieciowej: ASUS LANGuard
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 10
Maksymalna ilość portów USB 4.0: 1
Porty USB na panelu tylnym: 4x USB 2.0 + 6x USB 3.1 + 1x USB 3.2 Type-C + 1x USB 4 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate, Bluetooth® v5.4, Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E., For Windows 10, please note that no driver is available, refer to the, Wi-Fi chipset vendor's website for details, Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between, countries, The Bluetooth® version may vary, please refer to the Wi-Fi module, manufacturer's website for the latest specifications
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 5x 4-pin Chassis Fan header(s), 3x Addressable Gen 2 header, CPU Over Voltage jumper, Front Panel Audio header (AAFP), Power-on button(s), 10-1 pin System Panel header, Thermal Sensor header, BIOS FlashBack button , Clear CMOS button(s)
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (mm): 305 x 244
Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2 22110, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 5 x M.2 rubbers, 1 x Quick start guide
Zawiera baterię / akumulator: Tak
Informacje dodatkowe: Operating System: Windows 11, Manageability: WOL by PME, PXE
Obsługiwane typy procesorów: AMD Ryzen™ (AM5)
Uwagi do procesora: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Format płyty: ATX
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Chipset płyty głównej: AMD B850
Ilość złącz pamięci DDR5: 4
Maksymalna wielkość pamięci: 192 GB
Tryb pracy pamięci RAM: Dual Channel
Standard pamięci: DDR5-8000+ (OC)
Uwagi do pamięci RAM: Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP), Supported memory types, data rate (speed), and number of DRAM modules vary, depending on the CPU and memory configuration, for more information, please refer to CPU/Memory Support list under the Support tab of product
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 5x M.2
Uwagi do kontrolera SATA: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), - M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), AMD Ryzen™ 8000 Series Desktop Processors:, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports), - M.2_3 slot (Key M), type 2280 (Not supports), AMD B850 Chipset:, - M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - 4 x SATA 6Gb/s ports, When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8., when SATA6G_1 or SATA6G_2 run, M.2_2 and M.2_3 slot will be disabled while using the, AMD Ryzen™ 8000 Series Desktop Processors., M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is, operating, M.2_4 will be disabled., AMD RAIDXpert2 Technology, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 7000 Series Processors: RAID 0/1/10
Gniazda karty graficznej: HDMI, USB4 Type-C, DisplayPort
Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to, AMD CPU specifications, Supports max. 8K@30Hz as specified in DisplayPort 1.4, Supports 4K@60Hz as specified in HDMI 2.1, VGA resolution support depends on processors' or graphic cards' resolution, Supports max. 4K@60Hz as specified in DisplayPort 1.4a
Zintegrowana karta dźwiękowa: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Gniazda karty dźwiękowej: 2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, High quality 120 dB SNR stereo playback output and 110 dB SNR recording, input, Supports up to 32-Bit/384 kHz playback on front panel, SupremeFX Shielding Technology, Savitech SV3H712 AMP, Gold-plated audio jacks, Rear optical S/PDIF out port, Premium audio capacitors, Audio cover, A chassis with an HD audio module in the front panel is required to support, 7.1 Surround Sound audio output., The LINE OUT port on the rear panel does not support spatial audio. If you, wish to use spatial audio, make sure to connect your audio output device, to the audio jack on the front panel of your chassis or use a USB, interface audio device.
Złącza PCI Express x16: 3
Uwagi do złącz PCI: AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes), AMD Ryzen™ 8000 Series Desktop Processors:, - 1 x PCIe 5.0 x16 slot with Q-Rlease Slim(supports PCIe 4.0 x8 or x4 mode), AMD B850 Chipset:, - 1 x PCIe 4.0 x16 slot (supports x4 mode), When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8, M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is, operating, M.2_4 will be disabled.
Port LAN: 1x 5 Gigabit LAN Realtek®
Uwagi do karty sieciowej: ASUS LANGuard
Maksymalna ilość portów USB 2.0: 8
Maksymalna ilość portów USB 3.x: 10
Maksymalna ilość portów USB 4.0: 1
Porty USB na panelu tylnym: 4x USB 2.0 + 6x USB 3.1 + 1x USB 3.2 Type-C + 1x USB 4 Type-C
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port Wi-Fi: IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth: Bluetooth V5.4
Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate, Bluetooth® v5.4, Wi-Fi features may vary depending on the operating system, For Windows 11, Wi-Fi 7 will require24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E., For Windows 10, please note that no driver is available, refer to the, Wi-Fi chipset vendor's website for details, Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between, countries, The Bluetooth® version may vary, please refer to the Wi-Fi module, manufacturer's website for the latest specifications
Port PS/2: Brak
Port szeregowy (COM): Brak
Port równoległy (LPT): Brak
Inne porty i gniazda: 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 4-pin AIO Pump header, 5x 4-pin Chassis Fan header(s), 3x Addressable Gen 2 header, CPU Over Voltage jumper, Front Panel Audio header (AAFP), Power-on button(s), 10-1 pin System Panel header, Thermal Sensor header, BIOS FlashBack button , Clear CMOS button(s)
Gniazdo zasilania: ATX (24-pin) + 2x ATX12V (8-pin)
Wymiary [S x W] (mm): 305 x 244
Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2 22110, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Slide package, 1 x ROG key chain, 1 x ROG Strix stickers, 5 x M.2 rubbers, 1 x Quick start guide
Zawiera baterię / akumulator: Tak
Informacje dodatkowe: Operating System: Windows 11, Manageability: WOL by PME, PXE
Standard pamięci:
DDR5-8000+ (OC)
Zawiera baterię / akumulator:
Tak
Wyposażenie dodatkowe:
1x ASUS WiFi Q-Antenna, 1x Cable ties package, 1x M.2 Q-Slide package, 1x Quick start guide, 1x ROG key chain, 1x ROG Strix stickers, 1x Thermal pad for M.2 22110, 2x SATA 6Gb/s cables, 5x M.2 Rubbers
Format płyty:
ATX
Wymiary [S x W] (mm):
305 x 244
Maksymalna wielkość pamięci:
192 GB
Port LAN:
1x 5 Gigabit LAN Realtek®
Port Wi-Fi:
IEEE 802.11a/b/g/n/ac/ax/be
Port Bluetooth:
Bluetooth V5.4
Chipset płyty głównej:
AMD B850
Gniazdo procesora:
Socket AM5
Obsługiwane typy procesorów:
AMD Ryzen™ (AM5)
BIOS:
256 Mb Flash ROM, UEFI AMI BIOS
Tryb pracy pamięci RAM:
Dual Channel
Zintegrowany kontroler SATA:
Chipset+CPU: 4x SATA III 6Gb/s + 5x M.2
Gniazda karty graficznej:
DisplayPort, HDMI, USB4 Type-C
Zintegrowana karta dźwiękowa:
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Gniazda karty dźwiękowej:
2x Audio Jack, Wewnętrzne gniazdo audio przedniego panelu, Wyjście optyczne S/PDIF
Złącza PCI Express x16:
3
Uwagi do karty sieciowej:
ASUS LANGuard
Maksymalna ilość portów USB 2.0:
8
Maksymalna ilość portów USB 3.x:
10
Porty USB na panelu tylnym:
4x USB 2.0 + 6x USB 3.1 + 1x USB 3.2 Type-C + 1x USB 4 Type-C
Gniazda USB na płycie głównej:
2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Port PS/2:
Brak
Port szeregowy (COM):
Brak
Inne porty i gniazda:
10-1 pin System Panel header, 3x Addressable Gen 2 header, 4-pin AIO Pump header, 4-pin CPU Fan header, 4-pin CPU OPT Fan header, 5x 4-pin Chassis Fan header(s), BIOS FlashBack button , Clear CMOS button(s), CPU Over Voltage jumper, Front Panel Audio header (AAFP), Power-on button(s), Thermal Sensor header
Gniazdo zasilania:
ATX (24-pin) + 2x ATX12V (8-pin)
Uwagi do procesora:
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Uwagi do pamięci RAM:
ASUS Enhanced Memory Profile (AEMP), depending on the CPU and memory configuration, for more information, please refer to CPU/Memory Support list under the Support tab of product, Supported memory types, data rate (speed), and number of DRAM modules vary, Supports AMD EXTended Profiles for Overclocking (EXPO™)
Uwagi do kontrolera SATA:
- 4 x SATA 6Gb/s ports, - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), - M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports), - M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode), - M.2_3 slot (Key M), type 2280 (Not supports), - M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), - M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), - Ryzen™ 7000 Series Processors: RAID 0/1/10, - Ryzen™ 8000 Series Processors: RAID 0/1, - Ryzen™ 9000 Series Processors: RAID 0/1/5/10, AMD B850 Chipset:, AMD RAIDXpert2 Technology:, AMD Ryzen™ 8000 Series Desktop Processors:, AMD Ryzen™ 8000 Series Desktop Processors., AMD Ryzen™ 9000 & 7000 Series Desktop Processors:, M.2_2 and M.2_3 slot will be disabled while using the, M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is, operating, M.2_4 will be disabled., When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8., when SATA6G_1 or SATA6G_2 run
Uwagi do karty graficznej:
AMD CPU specifications, Graphics specifications may vary between CPU types. Please refer to, Supports 4K@60Hz as specified in HDMI 2.1, Supports max. 4K@60Hz as specified in DisplayPort 1.4a, Supports max. 8K@30Hz as specified in DisplayPort 1.4, VGA resolution support depends on processors' or graphic cards' resolution
Uwagi do złącz PCI:
- 1 x PCIe 4.0 x16 slot (supports x4 mode), - 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes), - 1 x PCIe 5.0 x16 slot with Q-Rlease Slim(supports PCIe 4.0 x8 or x4 mode), AMD B850 Chipset:, AMD Ryzen 9000 & 7000 Series Desktop Processors:, AMD Ryzen™ 8000 Series Desktop Processors:, M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is, operating, M.2_4 will be disabled., When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8
Port równoległy (LPT):
Brak
Ilość złącz pamięci DDR5:
4
Uwagi do karty dźwiękowej:
7.1 Surround Sound audio output., A chassis with an HD audio module in the front panel is required to support, Audio cover, Gold-plated audio jacks, High quality 120 dB SNR stereo playback output and 110 dB SNR recording, Impedance sense for front and rear headphone outputs, input, interface audio device., Premium audio capacitors, Rear optical S/PDIF out port, Savitech SV3H712 AMP, Supports up to 32-Bit/384 kHz playback on front panel, Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking, SupremeFX Shielding Technology, The LINE OUT port on the rear panel does not support spatial audio. If you, to the audio jack on the front panel of your chassis or use a USB, wish to use spatial audio, make sure to connect your audio output device
Maksymalna ilość portów USB 4.0:
1
Uwagi do WiFi / BT:
2x2 Wi-Fi 7 (802.11be), Bluetooth® v5.4, countries, For Windows 10, please note that no driver is available, refer to the, For Windows 11, Wi-Fi 7 will require 24H2 or later version for full, functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E., manufacturer's website for the latest specifications, Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate, The Bluetooth version may vary, please refer to the Wi-Fi module, Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between, Wi-Fi chipset vendor's website for details, Wi-Fi features may vary depending on the operating system
